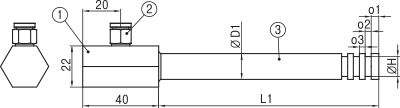

| 제품 Code | 규격 | L1 | Head Type | ØD1(내경) | o1 | o2 | o3 | ØH | 피팅 Size | HMC, KMC |
|---|---|---|---|---|---|---|---|---|---|---|

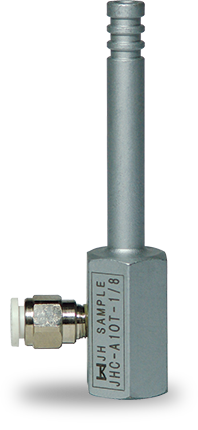

| JHC-A10T | 1/8 | User Order | HEX | 10.5(5.7) | 4 | 2.3 | 2 | 8.4 | AC8 PT 1/8 | OT2-1/4, 3/8, M145, M150, M155 |
| 1/4 | 13.8(8.5) | 3.2 | 3 | 10.6 | ||||||
| 3/8 | 17.3(11.5) | 3.2 | 3 | 14 |
| No. | 품명 | 재질 |
|---|---|---|
| ① | Cooler Head | Steel |
| ② | O/T Connector | AC8-PT1/8 |
| ③ | Cooler 외부 Pipe | Steel |

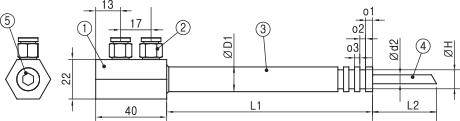

| 제품 Code | 규격 | L1, L2 | Head Type | ØD1(내경) | Ød2 | o1 | o2 | o3 | ØH | 피팅 Size | HMC, KMC |
|---|---|---|---|---|---|---|---|---|---|---|---|

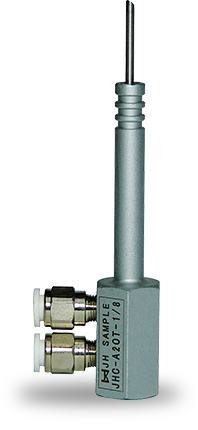

| JHC-A20T | 1/8 | User Order | HEX | 10.5(5.7) | 3.0 | 4 | 2.3 | 2 | 8.4 | AC8 PT 1/8 | OT2-1/4, 3/8, M145, M150, M155 |
| 1/4 | 13.8(8.5) | 5.0 | 3.2 | 3 | 10.6 | ||||||
| 3/8 | 17.3(11.5) | 7.0 | 3.2 | 3 | 14 |
| No. | 품명 | 재질 |
|---|---|---|
| ① | Cooler Head | Steel |
| ② | O/T Connector | AC8-PT1/8 |
| ③ | Cooler 외부 Pipe | Steel |
| ④ | Cooler 내부 Pipe | SUS |
| ⑤ | Hex Socket Plug | Steel |

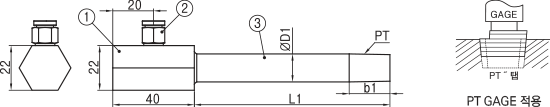

| 제품 Code | 규격 | L1 | Head Type | ØD1(내경) | PT | b1 | 피팅 Size | HMC, KMC |
|---|---|---|---|---|---|---|---|---|

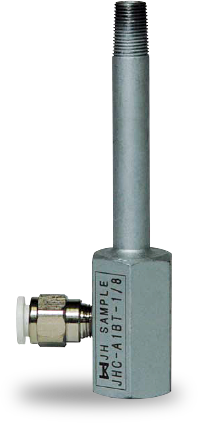

| JHC-A1BT | 1/8 | User Order | HEX | 10.5(5.7) | PT 1/8 | 12 | AC8 PT 1/8 | OTY- 1/8, 1/4, 3/8 |
| 1/4 | 13.8(8.5) | PT 1/4 | 17 | |||||
| 3/8 | 17.3(11.5) | PT 3/8 | 22 |
| No. | 품명 | 재질 |
|---|---|---|
| ① | Cooler Head | Steel |
| ② | O/T Connector | AC8-PT1/8 |
| ③ | Cooler 외부 Pipe | Steel |

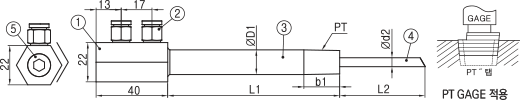

| 제품 Code | 규격 | L1, L2 | Head Type | ØD1(내경) | PT | Ød2 | b1 | 피팅 Size | HMC, KMC |
|---|---|---|---|---|---|---|---|---|---|

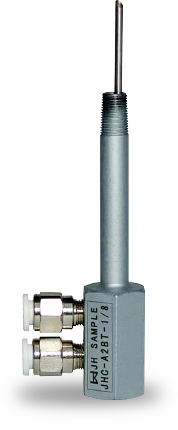

| JHC-A2BT | 1/8 | User Order | HEX | 10.5(5.7) | PT 1/8 | 3.0 | 12 | AC8 PT 1/8 | CTT-1/4, 3/8 |
| 1/4 | 13.8(8.5) | PT 1/4 | 5.0 | 17 | |||||
| 3/8 | 17.3(11.5) | PT 3/8 | 7.0 | 22 |
| No. | 품명 | 재질 |
|---|---|---|
| ① | Cooler Head | Steel |
| ② | O/T Connector | AC8-PT1/8 |
| ③ | Cooler 외부 Pipe | Steel |
| ④ | Cooler 내부 Pipe | SUS |
| ⑤ | Hex Socket Plug | Steel |
